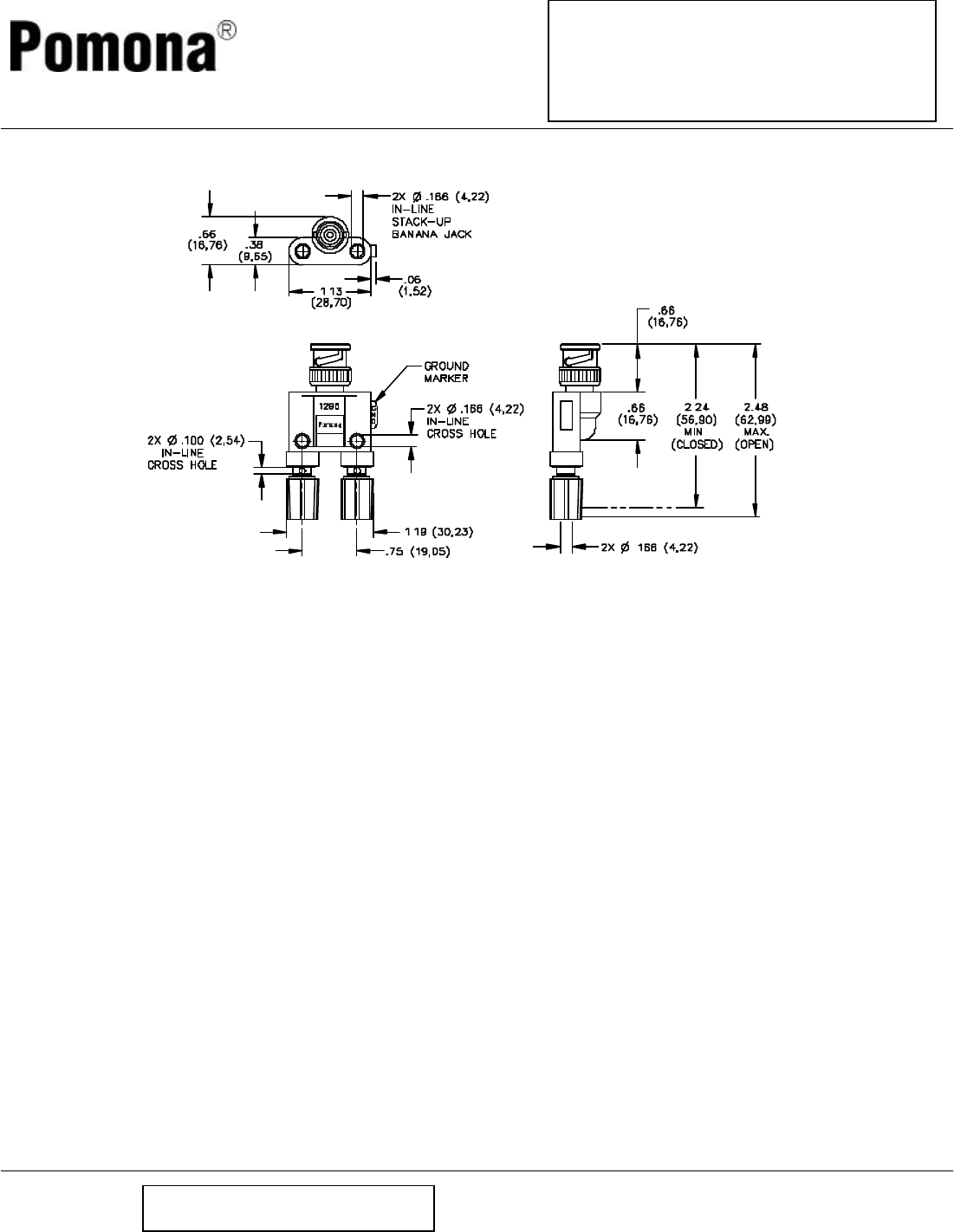

All dimensions are in inches and metric. All specifications are to the latest revisions. Specifications are subject to change without notice.
Registered trademarks are the property of their respective companies. Made in USA
5/22/02 SY/EH/LS PomonaACCESS 90501 (800) 444-6785 or (425) 446-6010
Last saved by PN More drawings available at www.pomonaelectronics.com
S:\Engineering\Release\DataSheets\FlukeDataSheet \d1296_1_02.doc Page 1 of 1
Model 1296
BNC (Male) To Double
Stacking Binding Post Jack
Sales: 800-490-2361 Fax: 888-403-3360
Technical Assistance: 800-241-2060
FEATURES:
• Converts BNC based test instruments to
double binding posts with banana jacks.
• Binding Posts can be vertically and horizontally
stacked for test versatility.
• Wires, spade lugs, pin tip plugs and banana
plugs can be attached by means of the insulated
knurled thumb knob.
• Insulated thumb knob is captive to prevent
misplacement.
• BNC features Nickel Plated, Beryllium Copper
for tarnish resistance & long insertion life.
• BNC center contact is Gold Plated, Brass for
low contact resistance
• BNC shell is plated for tarnish resistance.
MATERIALS:
BNC (Male): Body: Brass, Nickel Plated
Dielectric: PTFE
Center Contact: Brass, Gold Plated
Impedance: 50 Ohms
Insulation: ABS Molded to BNC (Male) and Binding
Post Bodies, Color: Black
Marking: “1296 POMONA”
Binding Post: Body – Brass, Nickel Plated
Insulated Thumb Knob –
Polycarbonate, Color: One Black, One Red
RATINGS:
Voltage: Hand-held testing: 30VAC/60VDC Max.
Hands free testing in controlled
voltage environments: 500 VRMS Max.
Operating Temperature: +50°C (+122°F) Max
ORDERING INFORMATION: Model 1296
