NTE Electronics, Inc. Voice (973) 748−5089 FAX (973) 748−6224 http://www.nteinc.com

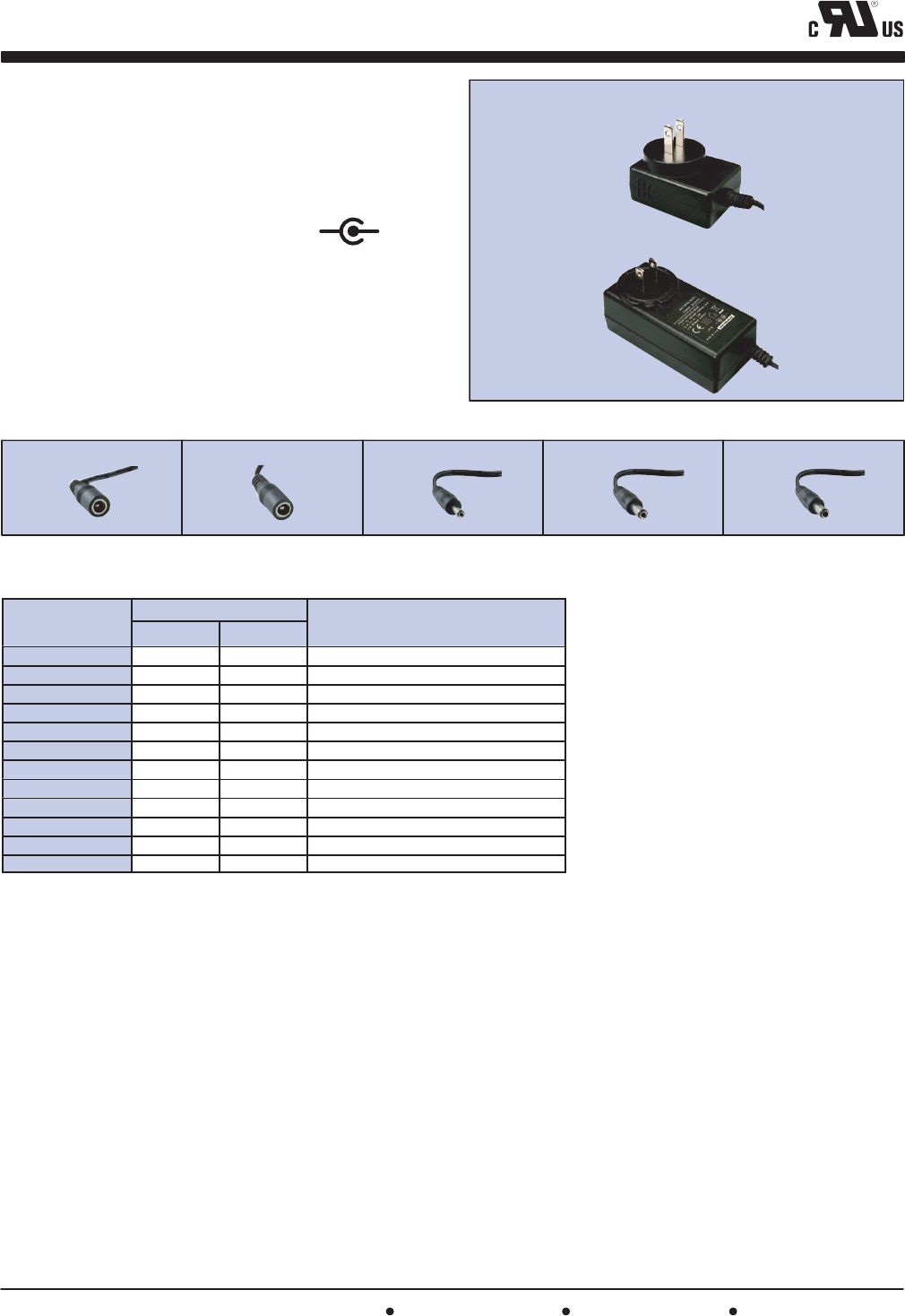

24V AC−DC Switching Power Supply
Specifications
AC Input
Voltage Range: 90 − 264 VAC
Input Frequency: 47 − 63 Hz
Inrush Current: 30A Max
DC Output
Voltage Range: 22.8V − 25.2V
Current Range: 0.1A − 1.2A
Ripple: 240mV Max (at Typ Input Voltage and Load Current)
Reliability
Insulation Resistance: 50MΩ Min (Input to Output, DC 500V)
MTBF: 50000 Hours
12 Watt
14.4 Watt
28.8 Watt
Plug Types
2.1mm x 5.5mm Jack 2.5mm x 5.5mm Jack 1.35mm x 3.5mm Plug 2.1mm x 5.5mm Plug 2.5mm x 5.5mm Plug
Ordering Information
NTE Type No.
DC Output
Plug Type
Amps Wattage
57−24D−500−3 500mA 12 1.35mm ID x 3.5mm OD Plug
57−24D−500−4 500mA 12 2.1mm ID x 5.5mm OD Plug
57−24D−500−5 500mA 12 2.5mm ID x 5.5mm OD Plug
57−24D−600−1 600mA 14.4 2.1mm x 5.5mm Jack
57−24D−600−2 600mA 14.4 2.5mm x 5.5mm Jack
57−24D−600−4 600mA 14.4 2.1mm ID x 5.5mm OD Plug
57−24D−600−5 600mA 14.4 2.5mm ID x 5.5mm OD Plug
57−24D−1200−1 1.2A 28.8 2.1mm x 5.5mm Jack
57−24D−1200−2 1.2A 28.8 2.5mm x 5.5mm Jack
57−24D−1200−3 1.2A 28.8 1.35mm ID x 3.5mm OD Plug
57−24D−1200−4 1.2A 28.8 2.1mm ID x 5.5mm OD Plug
57−24D−1200−5 1.2A 28.8 2.5mm ID x 5.5mm OD Plug
