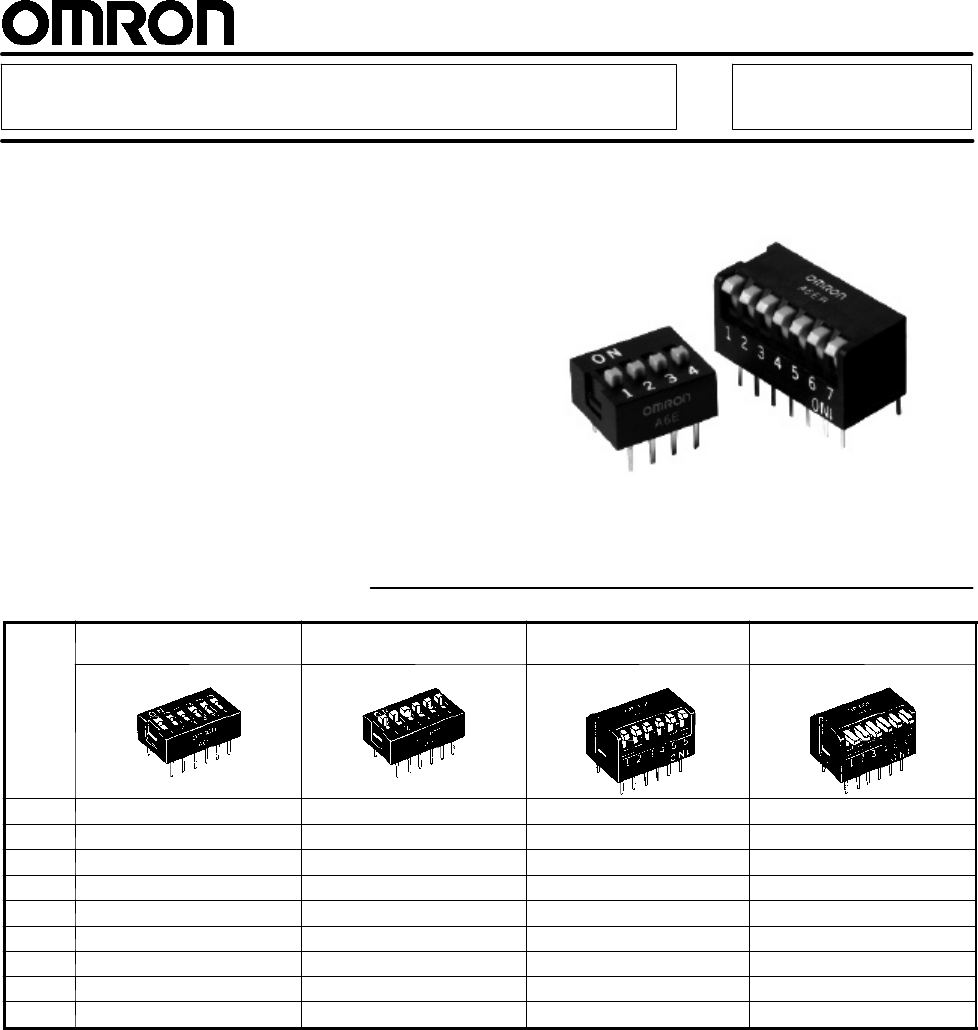

R
DIP Switch
A6E/A6ER
DIP Switch
H The sealed bottom prevents flux
penetration
H A variety of models including models
with short or long levers are available
No. of
poles
Flat actuated Raised actuator Side actuated (short-lever) Side actuated (long-lever)
DIP terminal DIP terminal DIP terminal DIP terminal
2 A6E-2101 A6E-2104 A6ER-2101 A6ER-2104
3 A6E-3101 A6E-3104 A6ER-3101 A6ER-3104
4 A6E-4101 A6E-4104 A6ER-4101 A6ER-4104
5 A6E-5101 A6E-5104 A6ER-5101 A6ER-5104
6 A6E-6101 A6E-6104 A6ER-6101 A6ER-6104
7 A6E-7101 A6E-7104 A6ER-7101 A6ER-7104
8 A6E-8101 A6E-8104 A6ER-8101 A6ER-8104
9 A6E-9101 A6E-9104 A6ER-9101 A6ER-9104
10 A6E-0101 A6E-0104 A6ER-0101 A6ER-0104
Important note: Switches cannot be water-washed.
A6E/A6ER A6E/A6ER
200

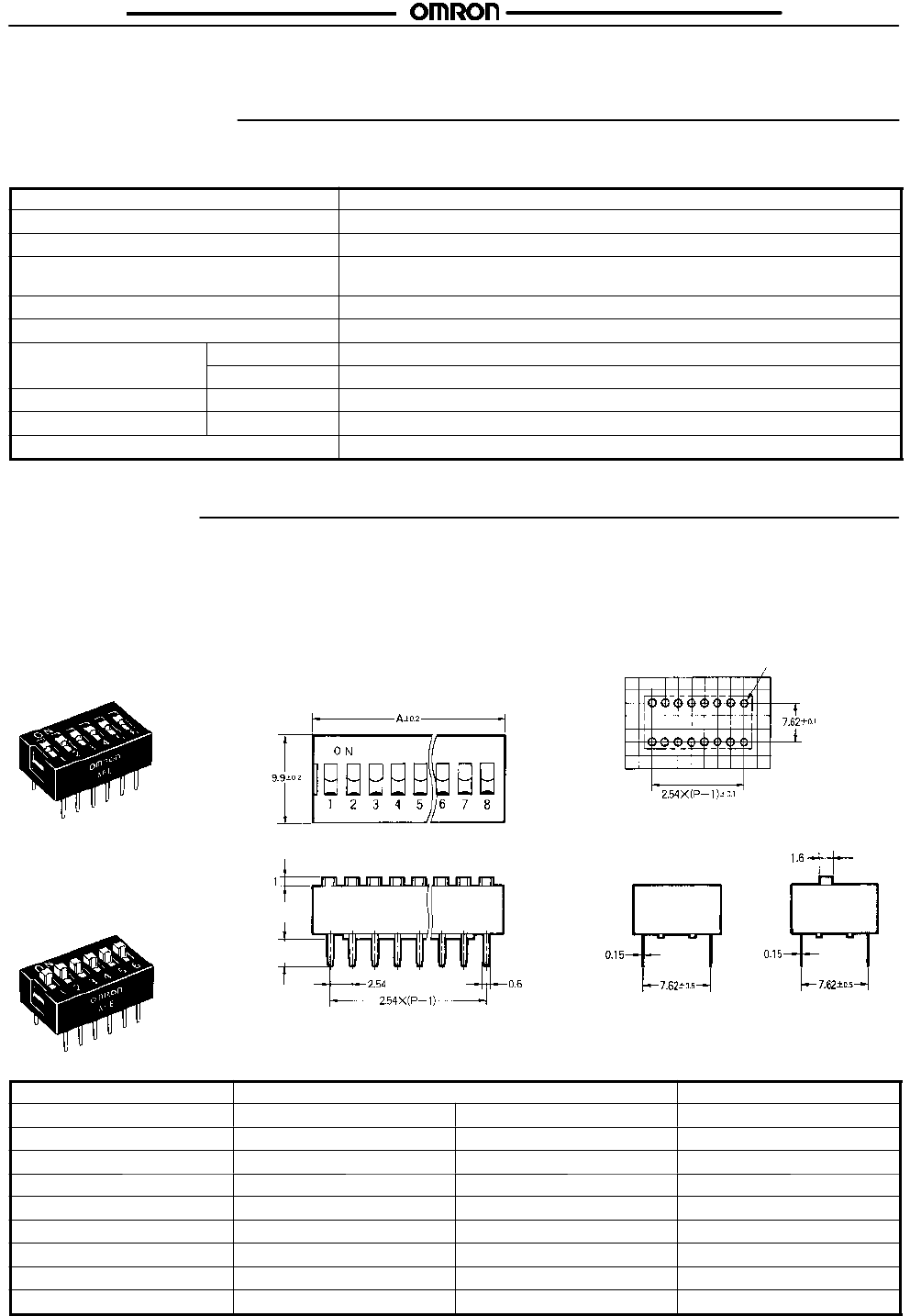

J CHARACTERISTICS
Switching capacity 25 mA at 24 VDC
Insulation resistance 100 MW min. (at 250 VDC)
Contact resistance 200 mW max. (initial value)
Dielectric strength 500 VAC for 1 min between terminals of same polarity, and between terminals of
different polarity
Vibration resistance Malfunction: 10 to 55 Hz, 1.5-mm double amplitude
Shock resistance Malfunction: 300 m/s
2
min. (approx. 30G min.)
Life expectancy Mechanical 1,000 operations min.
Electrical 1,000 operations min.
Ambient temperature Operating --20°C to 70°C (with no icing)
Ambient humidity Operating 35% to 90%
Operating force 0.29 N min. (30 gf)
Unit: mm (inch)
Note: Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.
J FLAT ACTUATED WITH
DIP TERMINAL
A6E-j101
Flat Actuated Raised Actuator
J RAISED ACTUATOR
WITH DIP TERMINAL
A6E-j104
PCB Dimensions
(Top View)
1.0±0.05 dia.
No. of poles Part number A
2 A6E-2101 A6E-2104 6.64
3 A6E-3101 A6E-3104 9.18
4 A6E-4101 A6E-4104 11.72
5 A6E-5101 A6E-5104 14.26
6 A6E-6101 A6E-6104 16.80
7 A6E-7101 A6E-7104 19.34
8 A6E-8101 A6E-8104 21.88
9 A6E-9101 A6E-9104 24.42
10 A6E-0101 A6E-0104 26.96
A6E/A6ER
A6E/A6ER
201

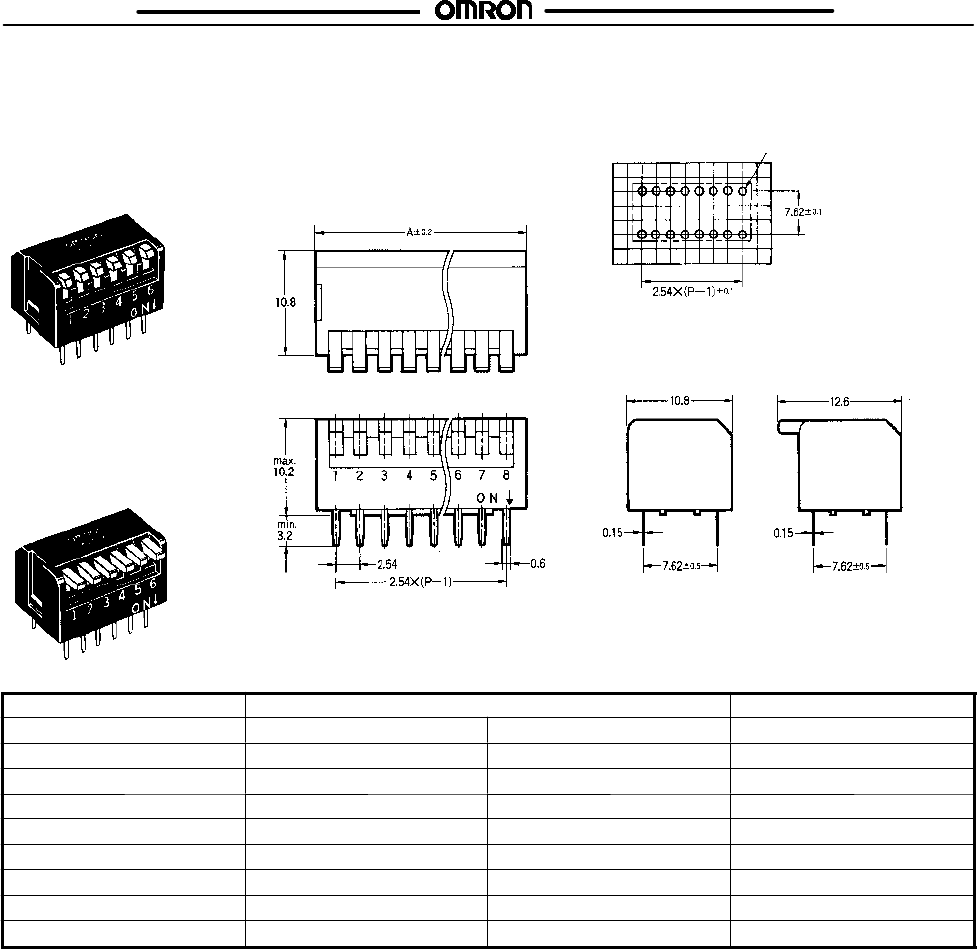

J DIP TERMINAL
SIDE ACTUATED
(SHORT-LEVER)
A6ER-j101
Side Actuated
(short-lever)
Side Actuated
(long-lever)
J SIDE ACTUATED
(LONG-LEVER)
A6ER-j104
PCB Dimensions
(Top View)
1.0±0.05 dia.
No. of poles Part number A
2 A6ER-2101 A6ER-2104 6.64
3 A6ER-3101 A6ER-3104 9.18
4 A6ER-4101 A6ER-4104 11.72
5 A6ER-5101 A6ER-5104 14.26
6 A6ER-6101 A6ER-6104 16.80
7 A6ER-7101 A6ER-7104 19.34
8 A6ER-8101 A6ER-8104 21.88
9 A6ER-9101 A6ER-9104 24.42
10 A6ER-0101 A6ER-0104 26.96
