CUSTOMER DRAWING
2170813
BING LIU
16SEP2014
JASON YANG
16SEP2014
SEAN HAN
26OCT2015
3:1
1 5
A
108-19428
114-32023
-
SEE NOTES
SEE NOTES
mm
-
0.25
0.2
-
-
-
GP 00
RECEPTACLE CAGE ASSEMLBY
WITH LIGHT PIPES,
THRU BEZEL, 1X2, QSFP28
-
20
20
00779
BY -
REF38.57
REF9.72
2X 18.75 0.10
2X 8.90 0.10
REF64.01
TYP2.05
3.0 MAX
7.88 18.50
REF13.71
1.01
REF42.95
-T-
WITHOUT 2170813-2
WITH 2170813-1
REAR PINS
OPTIONAL
PART NUMBER

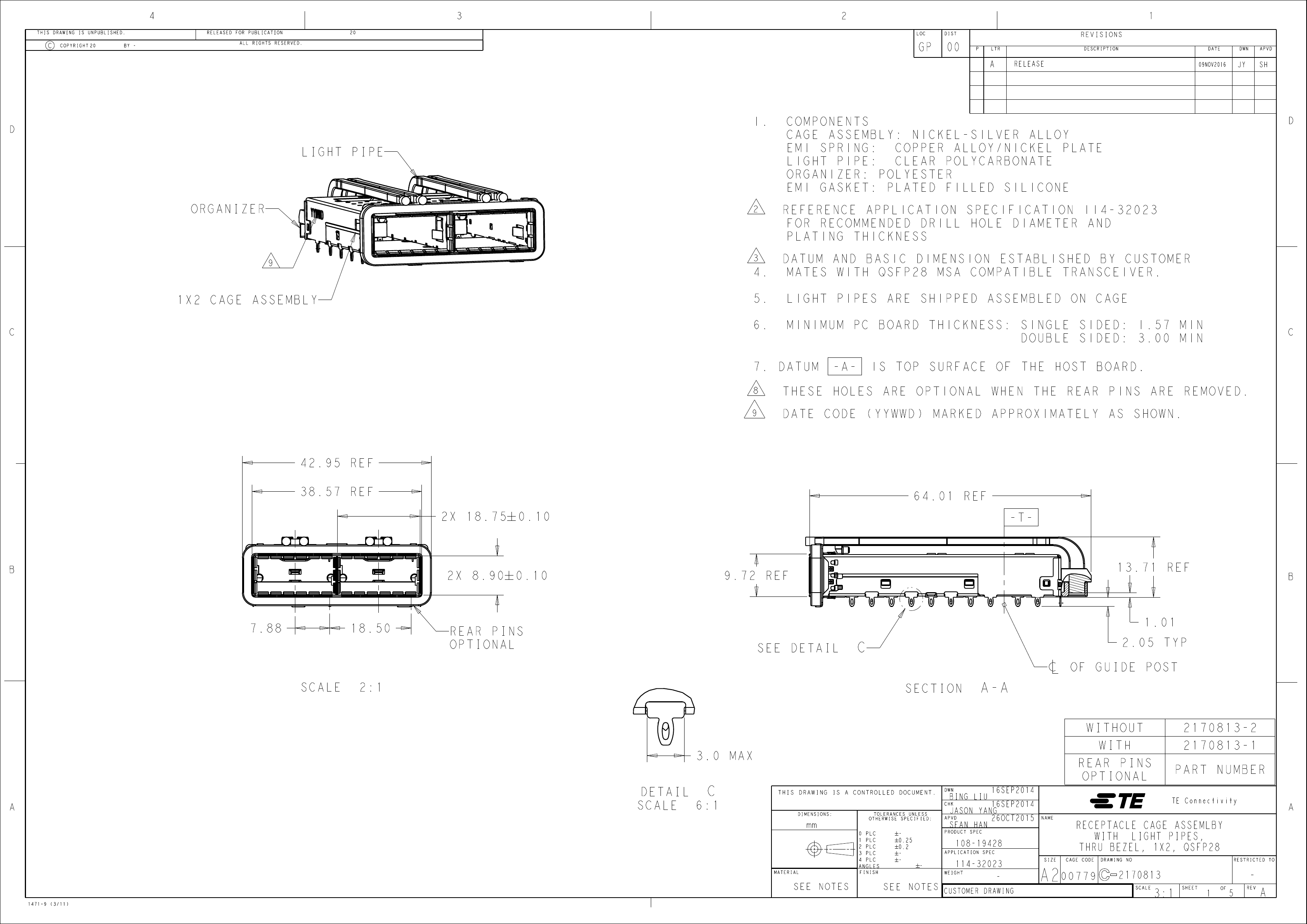

1. COMPONENTS
CAGE ASSEMBLY: NICKEL-SILVER ALLOY
EMI SPRING: COPPER ALLOY/NICKEL PLATE
LIGHT PIPE: CLEAR POLYCARBONATE
ORGANIZER: POLYESTER
EMI GASKET: PLATED FILLED SILICONE
REFERENCE APPLICATION SPECIFICATION 114-32023
FOR RECOMMENDED DRILL HOLE DIAMETER AND
PLATING THICKNESS
DATUM AND BASIC DIMENSION ESTABLISHED BY CUSTOMER
4. MATES WITH QSFP28 MSA COMPATIBLE TRANSCEIVER.
5. LIGHT PIPES ARE SHIPPED ASSEMBLED ON CAGE

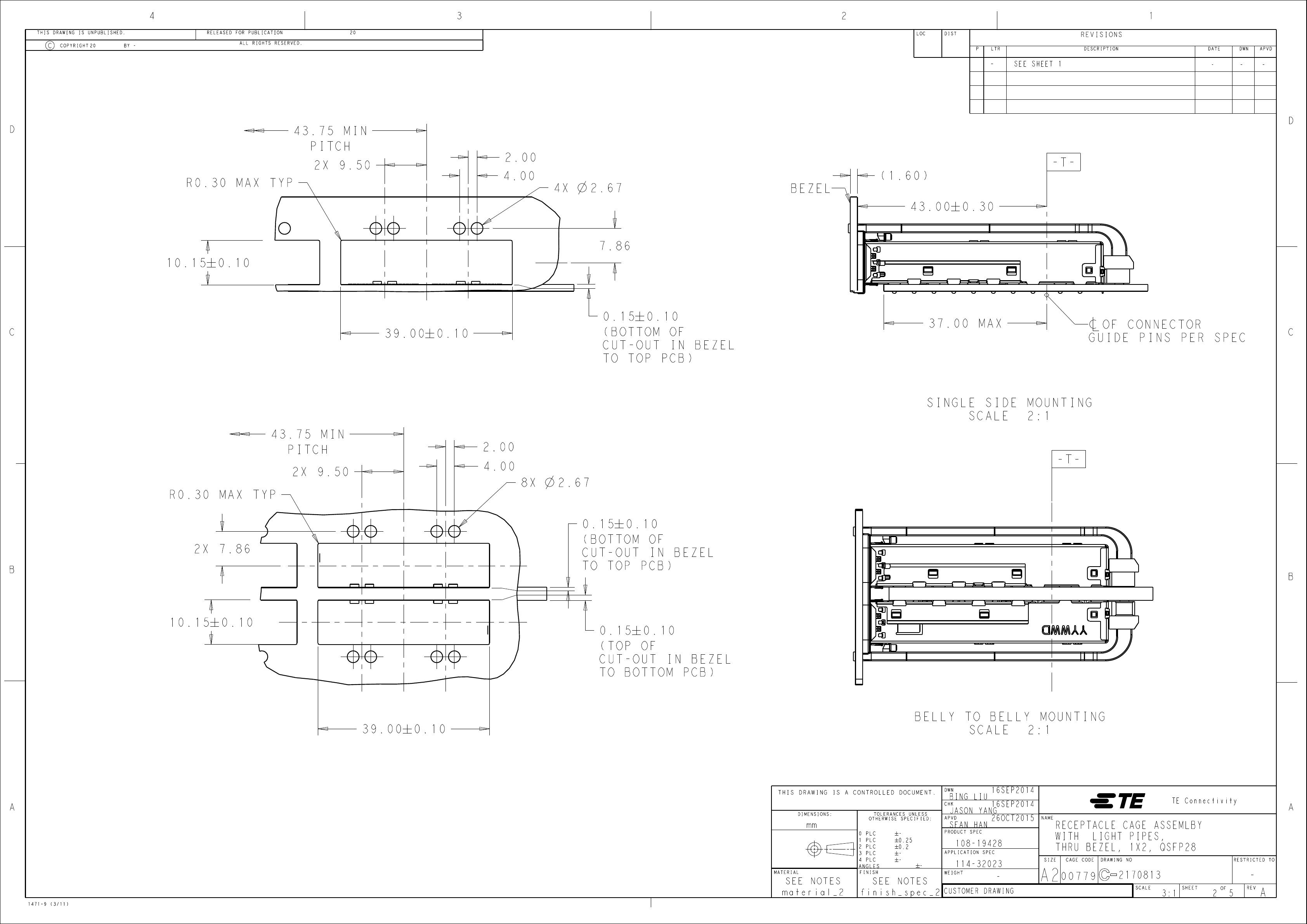

6. MINIMUM PC BOARD THICKNESS: SINGLE SIDED: 1.57 MIN
DOUBLE SIDED: 3.00 MIN
7. DATUM -A- IS TOP SURFACE OF THE HOST BOARD.

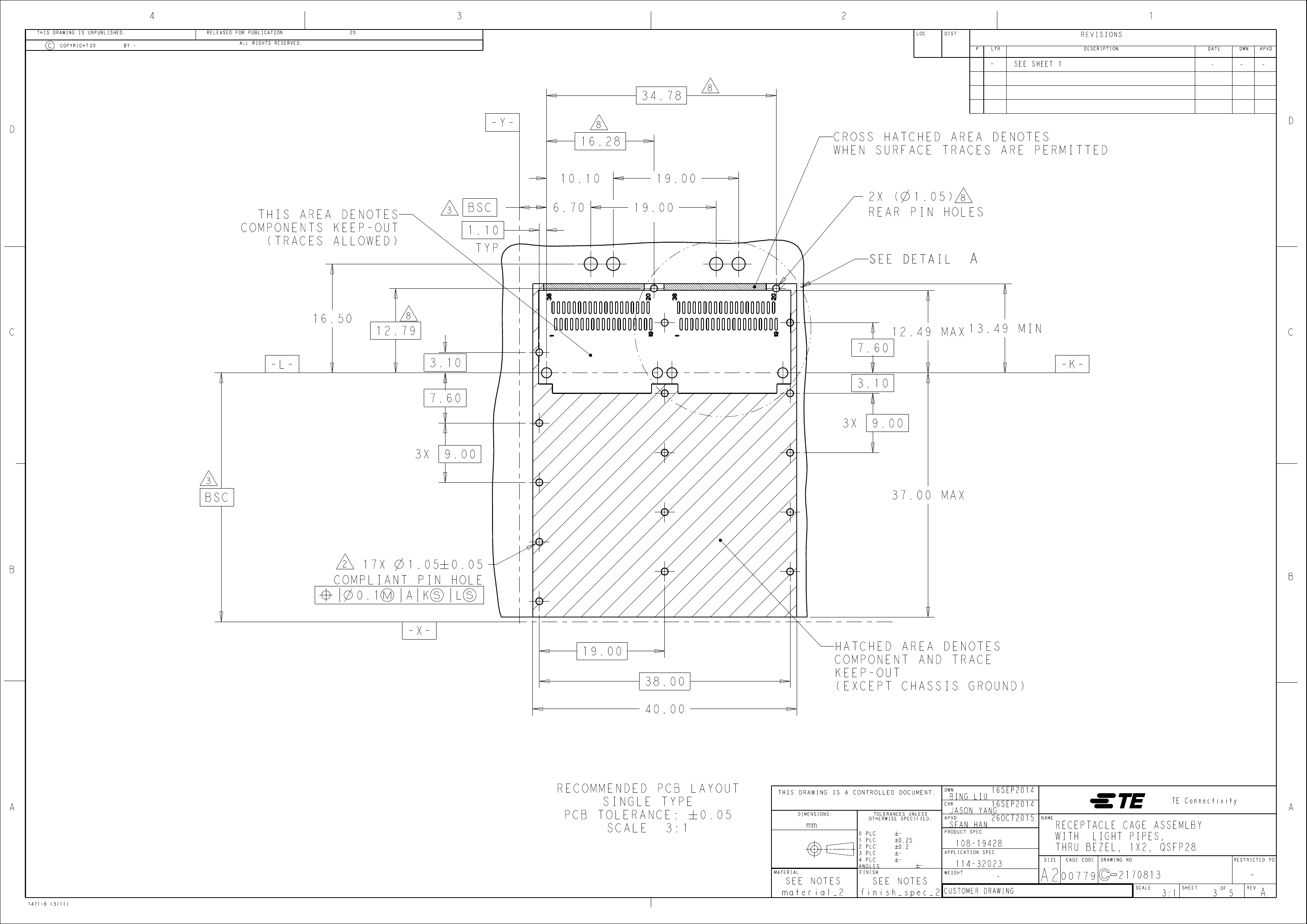

THESE HOLES ARE OPTIONAL WHEN THE REAR PINS ARE REMOVED.
DATE CODE (YYWWD) MARKED APPROXIMATELY AS SHOWN.
SCALE 2:1
REAR PINS
OPTIONAL
SEE DETAIL
C
SECTION A-A
1X2 CAGE ASSEMBLY
LIGHT PIPE
ORGANIZER
DETAIL C
SCALE 6:1
2
3
