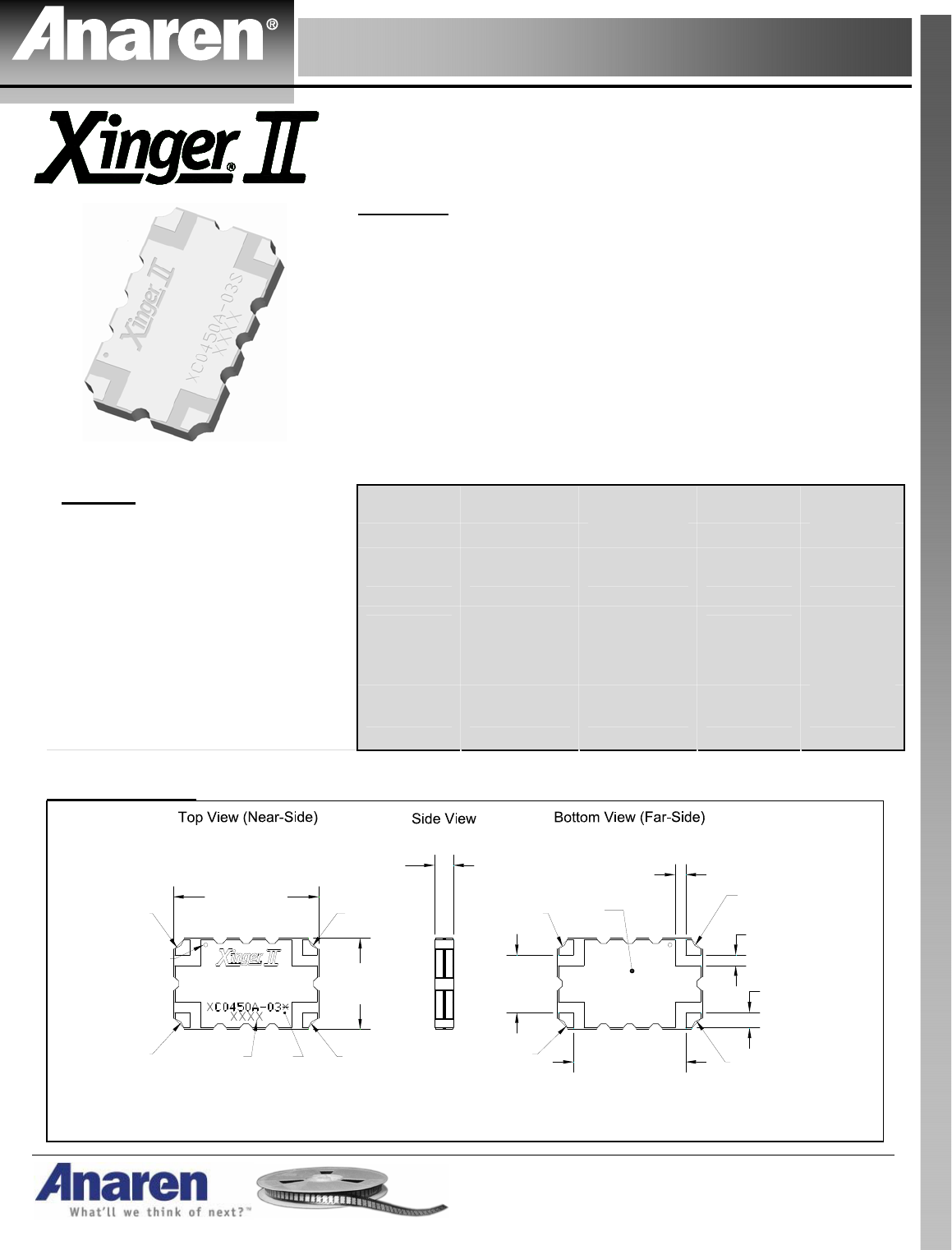

Model XC0450A-03
Rev B
Hybrid Coupler
3 dB, 90°
Description
The XC0450A-03 is a low profile, high performance 3dB hybrid coupler
in a new easy to use, manufacturing friendly surface mount package. It is
designed for NMT band applications. The XC0450A-03 is designed
particularly for balanced power and low noise amplifiers, plus signal
distribution and other applications where low insertion loss and tight
amplitude and phase balance is required. It can be used in high power
applications up to 45 Watts.
Parts have been subjected to rigorous qualification testing and they are
manufactured using materials with coefficients of thermal expansion (CTE)
compatible with common substrates such as FR4, G-10, RF-35, RO4350,
and polyimide. Available in both 5 of 6 tin lead (XC0450A-03P) and 6 of 6
RoHS compliant tin immersion (XC0450A-03S).
Electrical Specifications **
Frequency Isolation
Insertion
Loss
VSWR
Amplitude
Balance
MHz dB Min dB Max Max : 1 dB Max
410-480 23 0.36 1.22 ± 0.15
Phase
Balance
Power
ΘJC
Operating
Temp.
Degrees Avg. CW Watts ºC/Watt ºC
90 ± 3.5 45 27 -55 to +95
Features:
• 410 – 480 MHz
• NMT
• Very Low Loss
• Tight Amplitude Balance
• High Isolation
• Production Friendly
• Tape and Reel
• Available in Lead-Free (as
illustrated) or Tin-Lead
• Reliable, FIT= 0.53
**Specification based on performance of unit properly installed on Anaren Test Board 58481-0001 with small
signal applied. Specifications subject to change without notice. Refer to parameter definitions for details.
Mechanical Outline
.072
±.014
[1.82
±0.37
]
Denotes
Array Number
4X .040
±.004
[1.02
±0.10
]
4X .059
±.004
SQ
[1.50
±0.10
]
.430
±.004
[10.92
±0.10
]
.220
±.004
[5.59
±0.10
]
GND
Pin 1 Pin 2
Pin 3
Pin 4
Pin 2
Pin 4
Pin 3
.560
±.010
[14.22
±0.25
]
.350
±.010
[8.89
±0.25
]
Orientation
Marker Denotes
Pin 1
4X .040
±.004
[1.02
±0.10
]
Pin 1
GND
Dimensions are in Inches [Millimeters]
XC0450A-03* Mechanical Outline
* For RoHS compliant versions order with S suffix
Tolerances are non-cumulative
USA/Canada:
Toll Free:
Europe:
(315) 432-8909
(800) 411-6596
+44 2392-232392
Available on Tape and
Reel for Pick and Place
Manufacturing.
Model XC0450A-03
Rev B

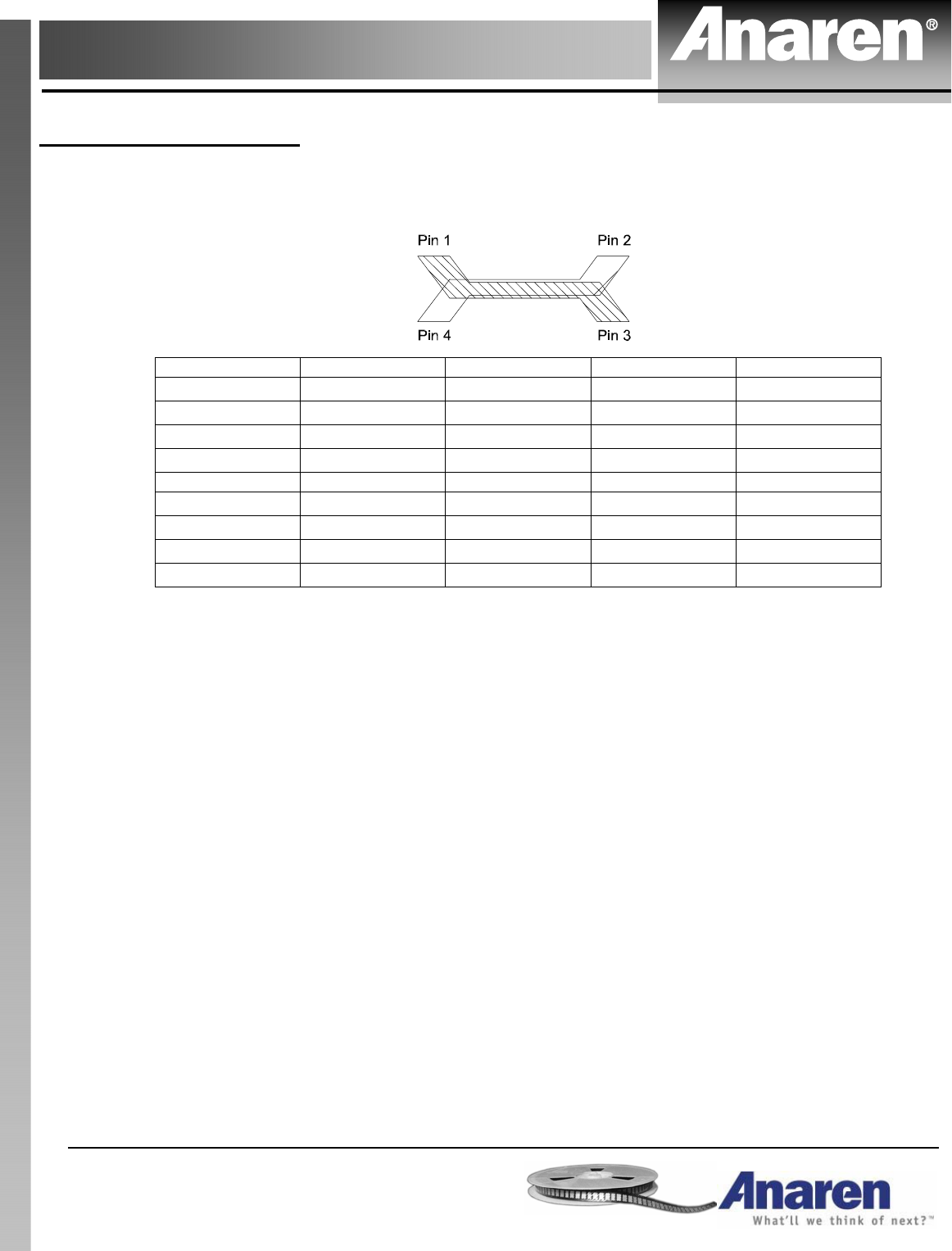

Hybrid Coupler Pin Configuration
The XC0450A-03 has an orientation marker to denote Pin 1. Once port one has been identified the other ports are
known automatically. Please see the chart below for clarification:
Configuration Pin 1 Pin 2 Pin 3 Pin 4
Splitter
Input Isolated
-3dB
90
-3dB
Splitter
Isolated Input
-3dB
-3dB
90
Splitter
-3dB
90
∠
-3dB
Input Isolated
Splitter
-3dB
∠ -3dB 90
Isolated Input
*Combiner
A
90−∠
A
Isolated Output
*Combiner
A
∠ A90
Output Isolated
*Combiner
Isolated Output
A
90
A
*Combiner
Output Isolated
A
A
90
∠
*Note: “A” is the amplitude of the applied signals. When two quadrature signals with equal amplitudes are
applied to the coupler as described in the table, they will combine at the output port. If the amplitudes are
not equal, some of the applied energy will be directed to the isolated port.
Available on Tape
and Reel for Pick and
Place Manufacturing.
USA/Canada:
Toll Free:
Europe
:
(315) 432-8909
(800) 411-6596
+44 2392-232392
Model XC0450A-03
Rev B

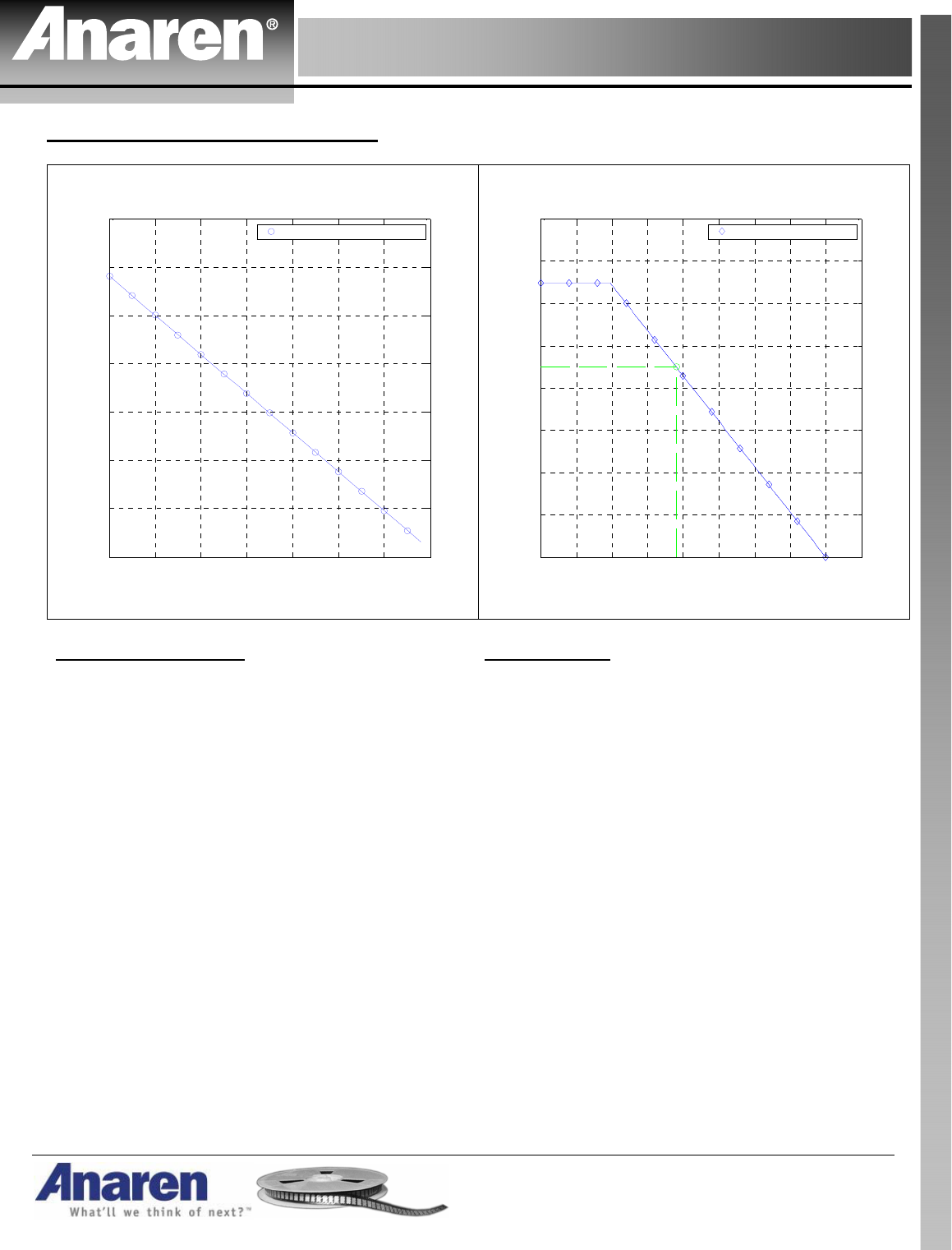

Insertion Loss and Power Derating Curves
-50 0 50 100 150 200 250 300
-0.5
-0.45
-0.4
-0.35
-0.3
-0.25
-0.2
-0.15
Temperature of the Part ( °C)
Insertion Loss (dB)
Typical Insertion Loss Derating Curve for XC0450A-03
typical insertion loss(f=480Mhz)
0 25 50 75 100 125 150 175 200 225
0
10
20
30
40
50
60
70
80
Base Plate Temperature (°C)
Power (Watts)
Power Derating Curve for XC0450E-03
power handling (f=480MHz)
Insertion Loss Derating:
The insertion loss, at a given frequency, of a group of
couplers is measured at 25°C and then averaged. The
measurements are performed under small signal
conditions (i.e. using a Vector Network Analyzer). The
process is repeated at -55°C and 95°C. Based on
copper as well as dielectric losses, the insertion loss is
computed from -55°C to 300°C.
Power Derating:
The power handling and corresponding power derating
plots are a function of the thermal resistance, mounting
surface temperature (base plate temperature),
maximum continuous operating temperature of the
coupler, and the thermal insertion loss. The thermal
insertion loss is defined in the Power Handling section of
the data sheet.
As the mounting interface temperature approaches the
maximum continuous operating temperature, the power
handling decreases to zero.
